Components [10/2018 - 07/2022]

Fig 1: Engine Coolant Temperature Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

REAR ENGINE UNDER COVER LH

-

-

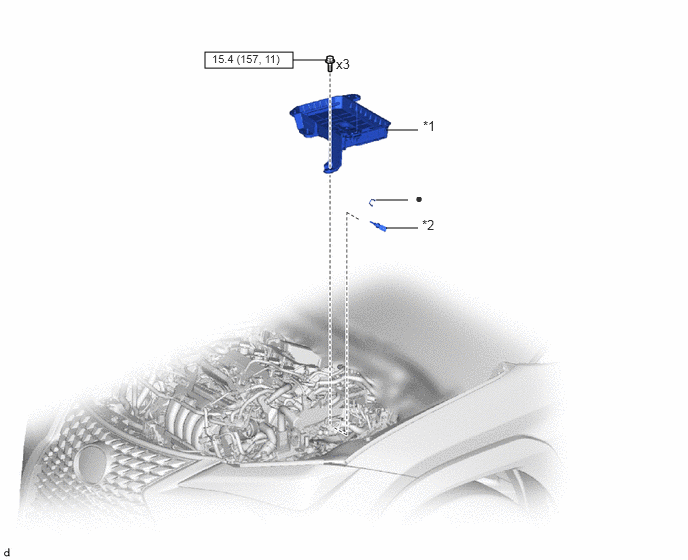

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY CLAMP SUB-ASSEMBLY	*2	ENGINE COOLANT TEMPERATURE SENSOR
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
