Installation [10/2018 - ]: Procedure

  1. INSTALL FRONT TURN SIGNAL LIGHT BULB
    1. Install the front turn signal light bulb as shown in the illustration.
      GTY795968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

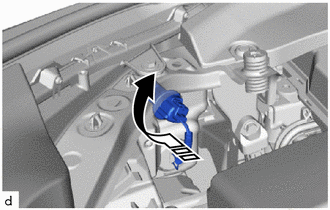

    2. Connect the front turn signal light bulb with the front turn signal light socket and wire sub-assembly as shown in the illustration.
      GTY788300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
