Power Window Master Switch
›
Components [06/2018 - ]
Components [06/2018 - ]

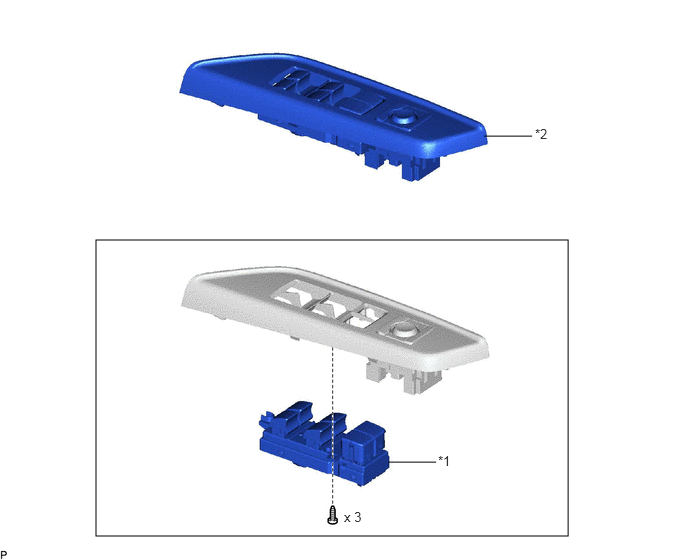

Fig 1: Power Window Master Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*2
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
