Components [08/2021 - ]

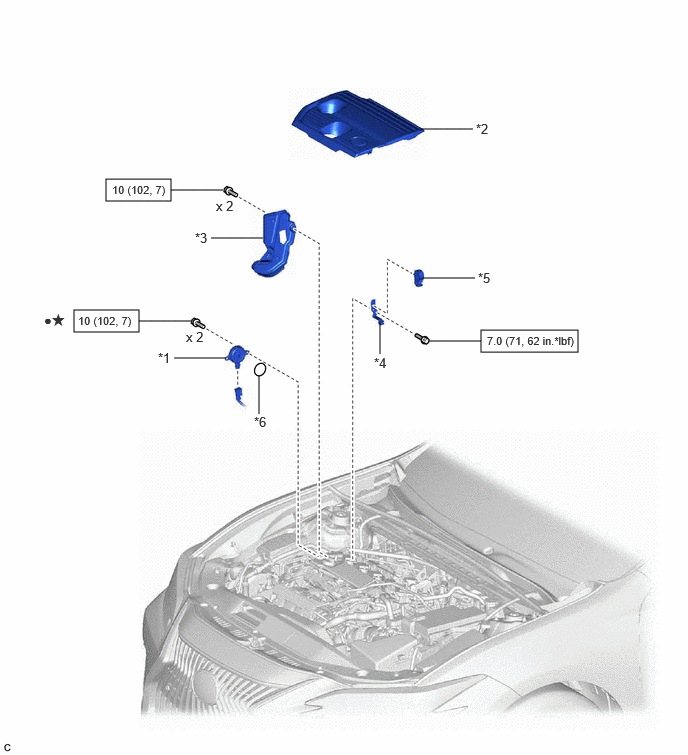

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [08/2021 - ]

*1	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	NO. 2 ENGINE COVER	*4	NO. 3 BRAKE TUBE CLAMP
*5	PIPING CLAMP	*6	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
