Removal [08/2020 - ]: Procedure

Refer to PROCEDURE - Step 20 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]

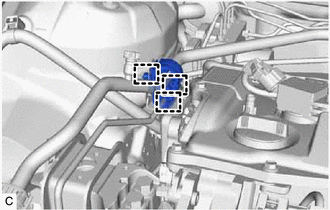

1. Disengage the 3 clamps and remove the piping clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When removing and installing the piping clamp, be careful not to deform the suction pipe sub-assembly or air conditioning tube and accessory assembly.

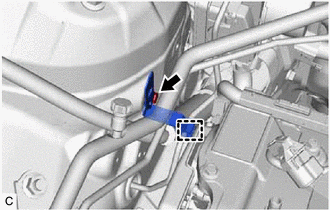

2. Remove the bolt to separate the No. 3 brake tube clamp from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the clamp and remove the No. 3 brake tube clamp.

Refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

1. Disconnect the cam timing oil control solenoid assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing gear cover assembly.
   NOTE:

   If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

1. Remove the O-ring from the cam timing oil control solenoid assembly.
   NOTE:

   • When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
   • If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
