Components [08/2020 - ]

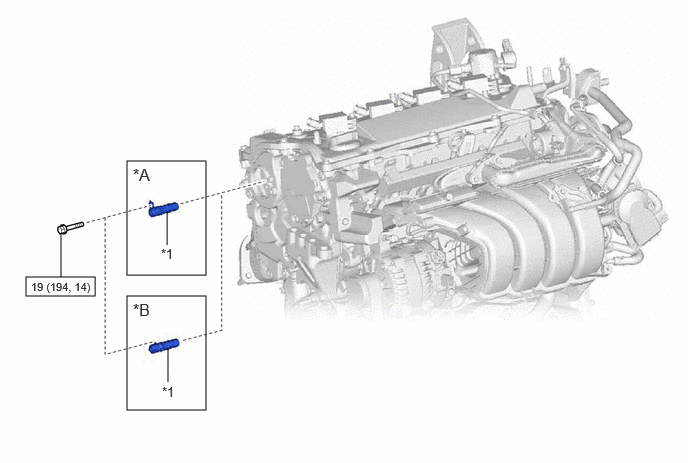

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	CAMSHAFT TIMING VALVE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
