Installation [06/2018 - ]: Procedure

  1. INSTALL FRONT TURN SIGNAL LIGHT BULB
    1. Install the front turn signal light bulb to the headlight cord.

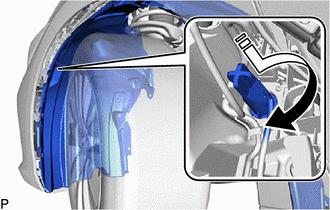

    2. Turn the headlight cord with the front turn signal light bulb as shown in the illustration to install them as a unit.
      GTY795601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR FENDER SPLASH SHIELD SUB-ASSEMBLY

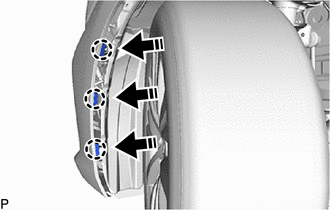

    1. Engage the 3 claws to install the 3 front fender liner retainers to the front bumper assembly as shown in the illustration.
      GTY812730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

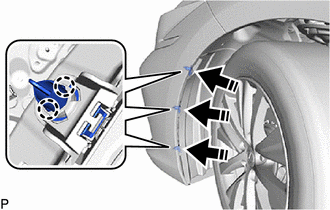

    2. Engage the 6 claws to install the 3 pin hold clips to the rear fender splash shield sub-assembly as shown in the illustration.
      GTY820597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the rear fender splash shield sub-assembly with the clip.
