AIR FUEL RATIO SENSOR (for Sensor 2)
›
Components [06/2018 - ]
Components [06/2018 - ]

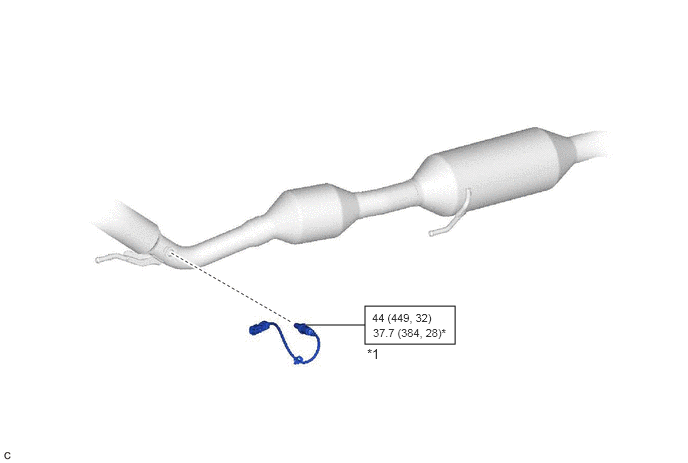

Fig 1: Air Fuel Ratio Sensor (For Sensor 2) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
AIR FUEL RATIO SENSOR
-
-
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with SST
