Components [06/2018 - 08/2021]

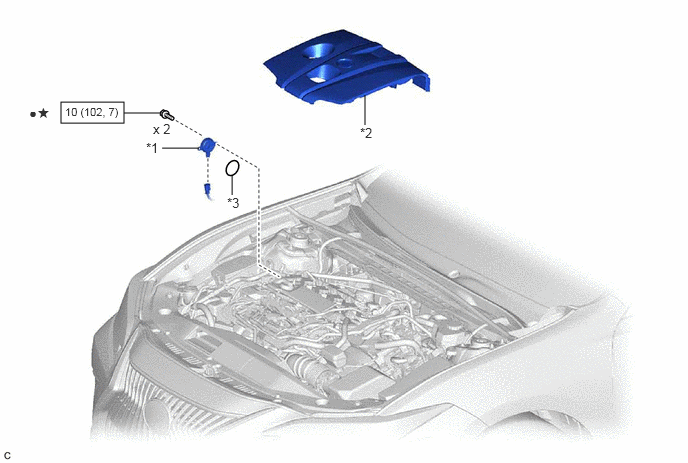

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [06/2018 - 08/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
