Components [06/2018 - ]

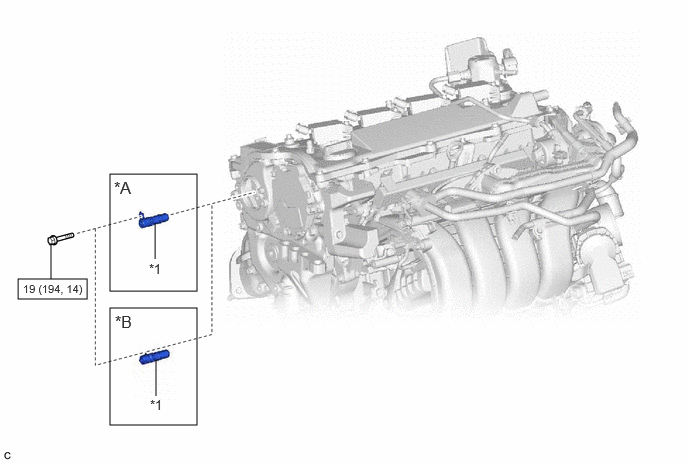

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY948665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type A *B Type B
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) - -
N.m (kgf/cm, ft.lbf): Specified torque - -
