Components [06/2018 - 08/2021]

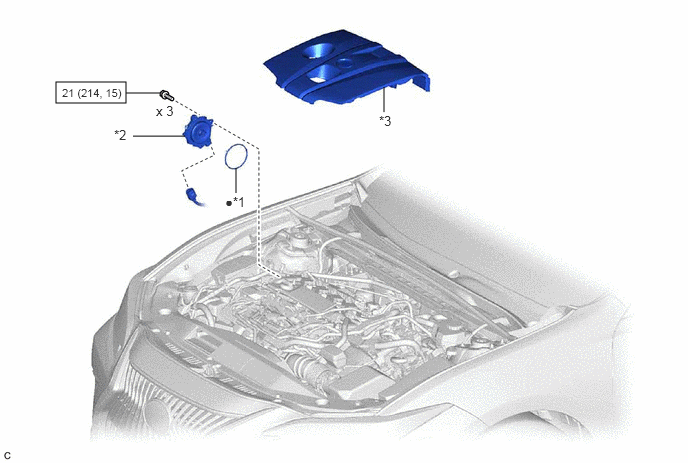

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications [06/2018 - 08/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAM TIMING CONTROL MOTOR O-RING	*2	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
