Components [06/2018 - ]

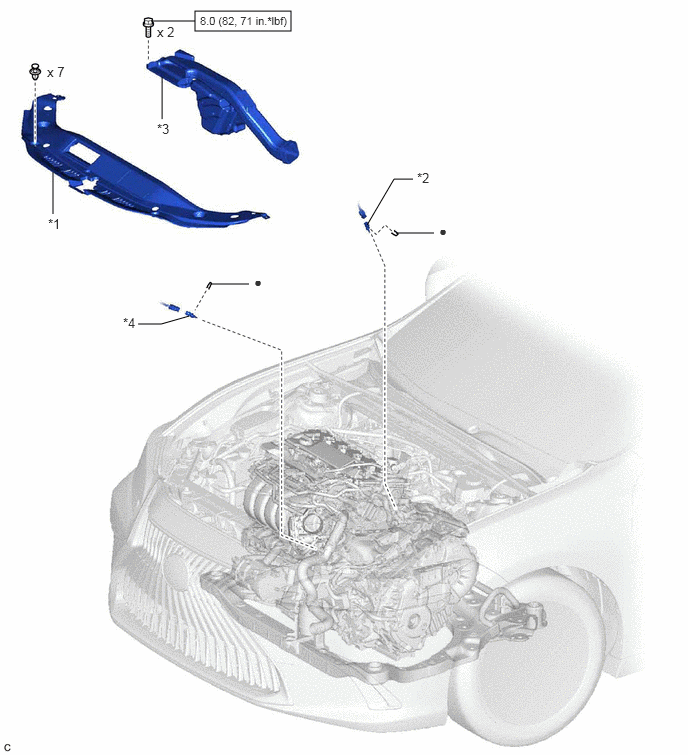

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY804849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 ENGINE COOLANT TEMPERATURE SENSOR
*3 INLET AIR CLEANER ASSEMBLY *4 NO. 2 ENGINE COOLANT TEMPERATURE SENSOR
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
