Components [08/2021 - ]

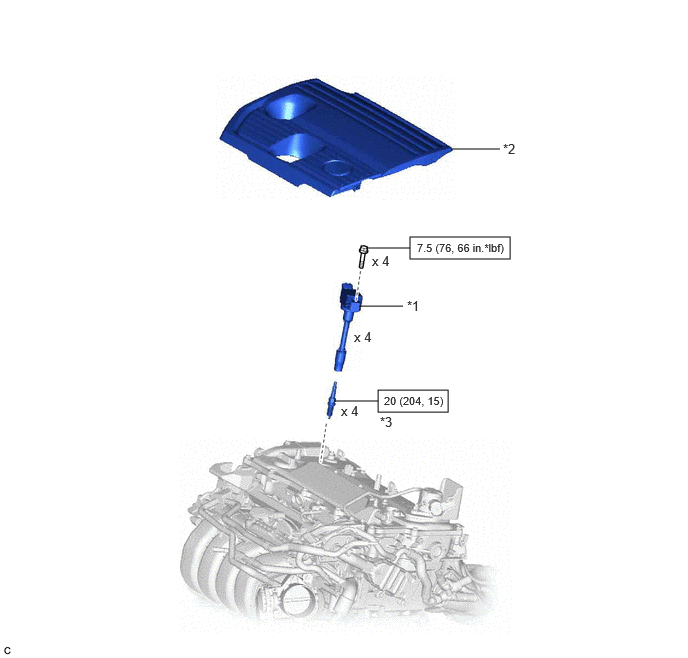

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [08/2021 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	SPARK PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
