Installation [06/2018 - ]: Procedure

  1. INSTALL BATTERY
    1. w/ Battery Insulator
      1. Install the battery insulator to the battery.
    2. Install the battery to the vehicle.
    3. Install the No. 2 battery clamp to the battery clamp sub-assembly with the bolt.

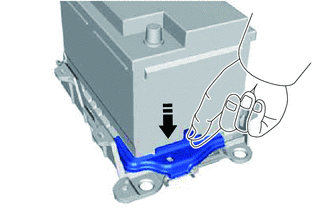

      GTY836525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Torque: 18.5 N*m (189 kgf*cm, 14 ft.*lbf)

    4. Connect the cable to the positive (+) battery terminal and tighten the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    5. Engage the 2 claws to install the battery terminal cap to the positive (+) battery terminal.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    1. Connect the cable to the negative (-) battery terminal and tighten the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [06/2018 - 10/2019] , or refer to INITIALIZATION [10/2019 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - ]
