Removal [06/2018 - ]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 19 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 19 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 19 [09/2022 - ]
REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2

REMOVE SPARK PLUG

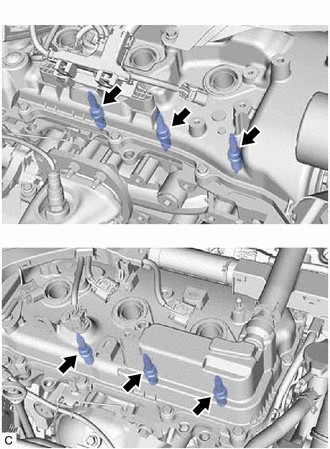

Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.

NOTE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.
