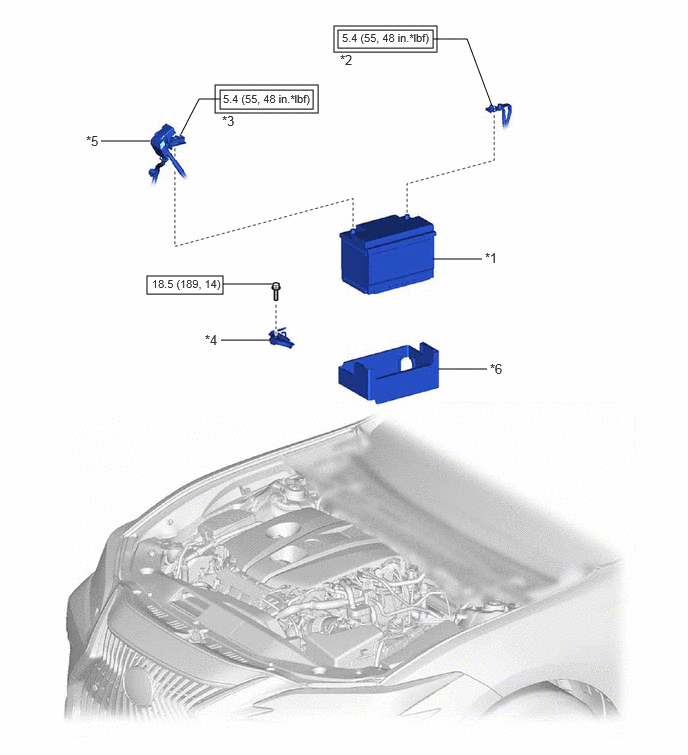

Components [08/2020 - ]
| *1 | BATTERY | *2 | NEGATIVE BATTERY TERMINAL |
| *3 | POSITIVE BATTERY TERMINAL | *4 | NO. 2 BATTERY CLAMP |
| *5 | BATTERY TERMINAL CAP | *6 | BATTERY INSULATOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
