Removal [06/2018 - ]: Procedure

  1. SEPARATE REAR FENDER SPLASH SHIELD SUB-ASSEMBLY

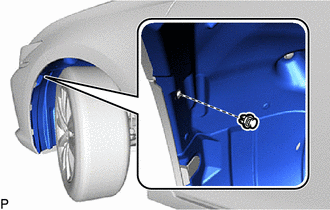

    1. Remove the clip.
      GTY789620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

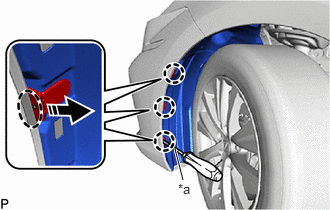

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to separate the rear fender splash shield sub-assembly.
      GTY791815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

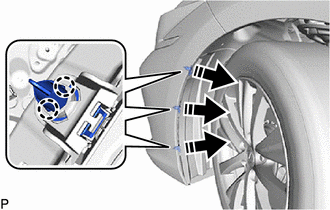

    3. Disengage the 6 claws to remove the 3 pin hold clips from the rear fender splash shield sub-assembly as shown in the illustration.
      GTY797859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

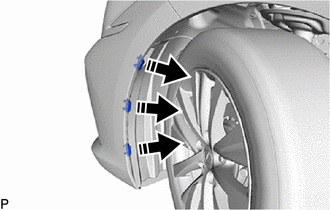

    4. Remove the 3 front fender liner retainers from the rear fender splash shield sub-assembly as shown in the illustration.
      GTY838369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE FRONT TURN SIGNAL LIGHT BULB

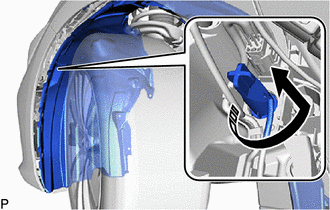

    1. Turn the headlight cord with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY830388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction
    2. Remove the front turn signal light bulb from the headlight cord.
