Components [06/2018 - ]

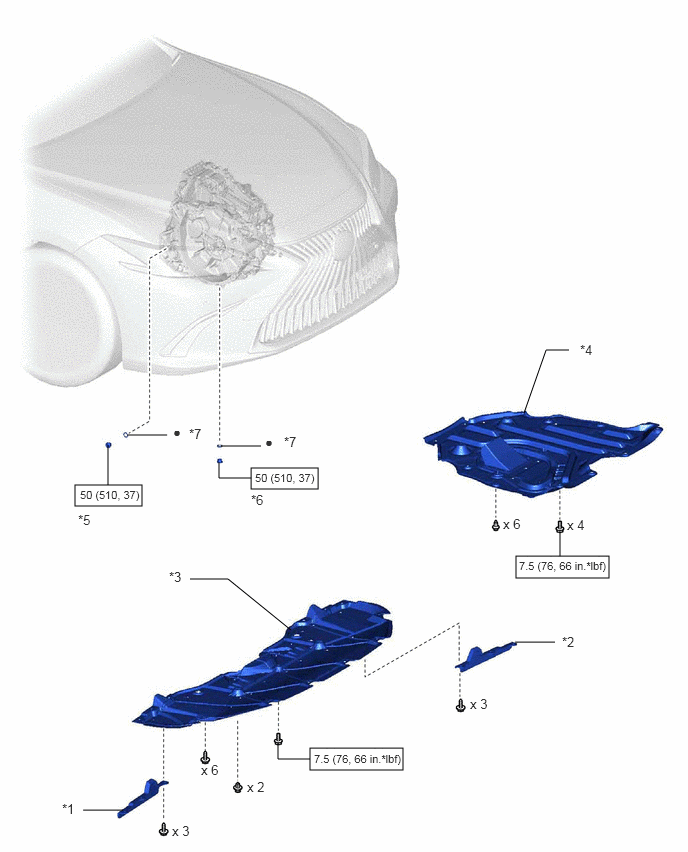

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications [06/2018 - ]
GTY830133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT WHEEL OPENING EXTENSION PAD RH *2 FRONT WHEEL OPENING EXTENSION PAD LH
*3 NO. 1 ENGINE UNDER COVER *4 NO. 2 ENGINE UNDER COVER ASSEMBLY
*5 FILLER PLUG *6 DRAIN PLUG
*7 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
