Components [06/2018 - ]

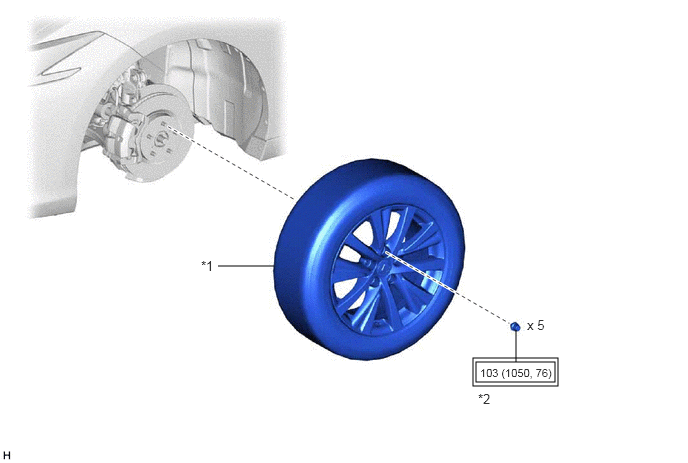

Fig 1: Tire And Wheel With Torque Specifications [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	WHEEL ASSEMBLY	*2	AXLE HUB NUT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
