Replacement [06/2018 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 7 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 8 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 9 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  4. REMOVE NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 10 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  5. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 12 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 12 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 12 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 12 [09/2022 - ]

  6. REPLACE AUTOMATIC TRANSAXLE FLUID
    1. Lift the vehicle. [#1]
      NOTE:

      Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

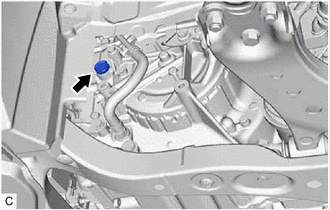

    2. Remove the refill plug and gasket from the automatic transaxle case sub-assembly. [#2]
      GTY768643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

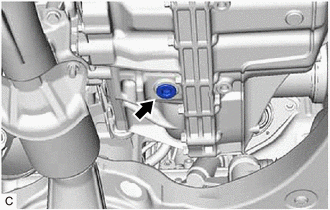

    3. Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing. [#3]
      GTY740914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

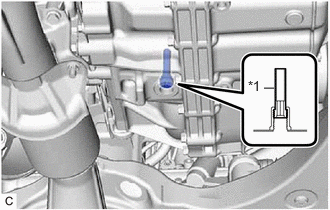

    4. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle housing and drain the automatic transaxle fluid. [#4]
      GTY761449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Filler Tube

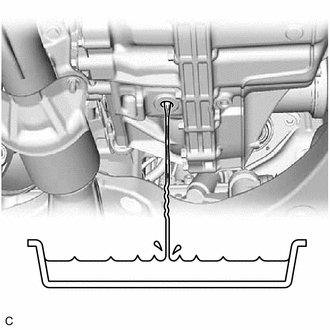

    5. Measure the amount of automatic transaxle fluid drained. [#5]
      GTY740908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Add the same amount of automatic transaxle fluid in step [#8].

    6. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the transaxle housing. [#6]

      Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

    7. Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing. [#7]
      GTY740914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.

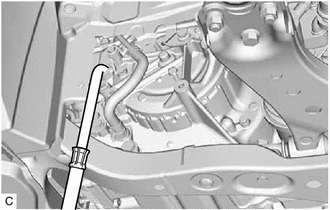

    8. Add automatic transaxle fluid to the refill hole using the same amount of automatic transaxle fluid drained in step [#5]. [#8]
      GTY768642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use Toyota Genuine ATF WS.

    9. Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage. [#9]
      GTY768643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

    10. Lower the vehicle. [#10]
    11. Start the engine. [#11]
    12. Slowly move the shift lever from P to D, and then back to P. [#12]

      HINT:

      • Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
      • Keep the shift lever in each position for approximately 3 seconds.
    13. Allow the engine to idle for 30 seconds to warm it up. [#13]
    14. Turn the engine switch off. [#14]
    15. Repeat steps [#1] to [#14].
    16. Repeat steps [#1] to [#10].
  7. ADD SPECIFIED AMOUNT OF AUTOMATIC TRANSAXLE FLUID

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - ]

  8. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Using the Techstream)

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

  9. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Not Using the Techstream)

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  10. ADJUST AUTOMATIC TRANSAXLE FLUID LEVEL

    Refer to PROCEDURE - Step 8 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - ]

  11. REBUILD WORK

    Refer to PROCEDURE - Step 9 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - ]

  12. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 66

  13. INSTALL NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 69

  14. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 70

  15. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 71

  16. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 72
