Automatic Light Control Sensor
›
Components [08/2021 - ]
Components [08/2021 - ]

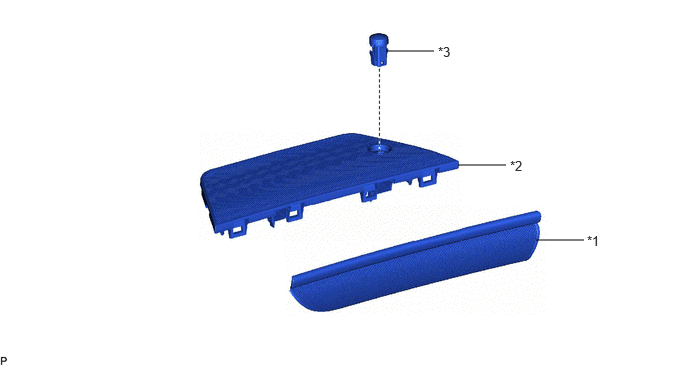

Fig 1: Automatic Light Control Sensor Replacement Components [08/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH
*2
NO. 1 SPEAKER OPENING COVER ASSEMBLY
*3
AUTOMATIC LIGHT CONTROL SENSOR
-
-
