Removal [06/2018 - ]: Procedure

  1. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

    Refer to REMOVAL [06/2018 - ]

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 19 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 19 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 19 [09/2022 - ]

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 7 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 8 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 9 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  6. REMOVE NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 10 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  7. REMOVE SUSPENSION TOWER DAMPER (w/ Performance Damper)

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]

  8. REMOVE FRONT ENGINE MOUNTING INSULATOR

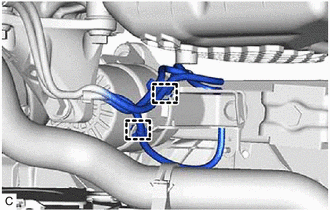

    1. Disengage the 2 clamps to separate the vacuum hoses from the front engine mounting insulator.
      GTY763558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

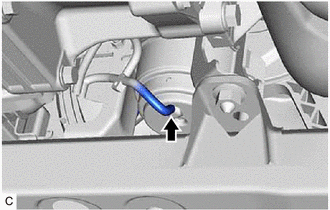

    2. Disconnect the vacuum hose from the front engine mounting insulator.
      GTY763556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

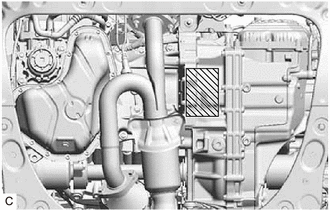

    3. Support the engine assembly with transaxle using a jack and wooden block.
      GTY769152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location

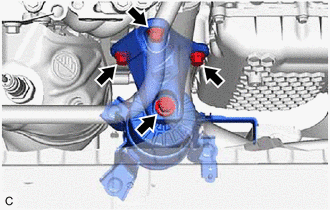

    4. Remove the 4 bolts and front engine mounting bracket.
      GTY763564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

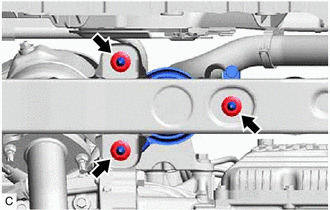

    5. Remove the 3 nuts and front engine mounting insulator from the front frame assembly.
      GTY763562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the nut and stay from the front engine mounting insulator.
      GTY763563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
