Components [06/2018 - ]

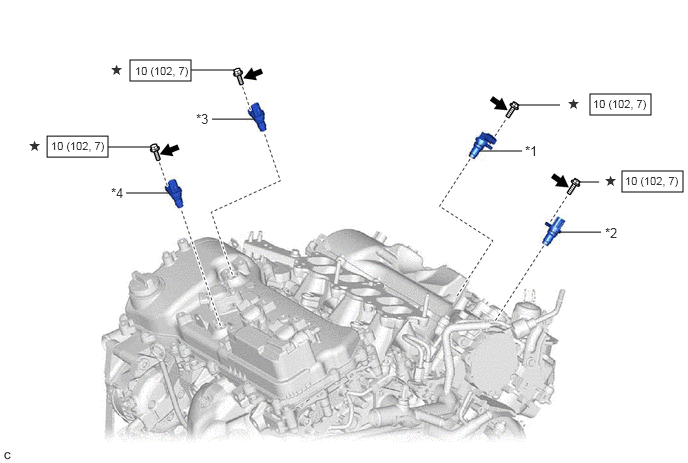

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY743130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 VVT SENSOR (for Intake Side of Bank 1) *2 VVT SENSOR (for Exhaust Side of Bank 1)
*3 VVT SENSOR (for Intake Side of Bank 2) *4 VVT SENSOR (for Exhaust Side of Bank 2)
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part - -
