Engine Control System (2GR-FKS) - Service Information
›
Crankshaft Position Sensor
›
Components [06/2018 - ]
Components [06/2018 - ]

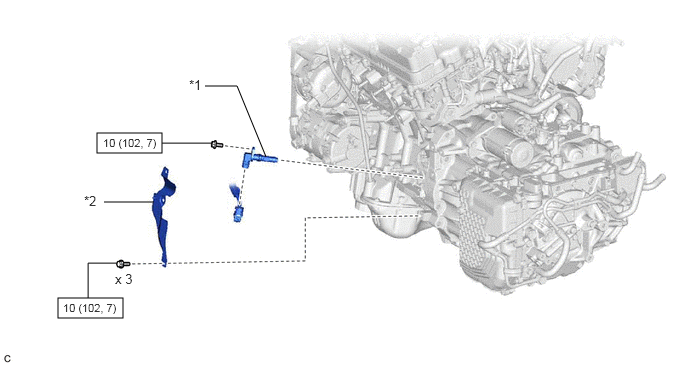

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CRANKSHAFT POSITION SENSOR
*2
CRANKSHAFT POSITION SENSOR PROTECTOR
N.m (kgf/cm, ft.lbf): Specified torque
-
-
