Removal [06/2018 - ]: Procedure

  1. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to REMOVAL [06/2018 - ]

  2. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
    1. Remove the 3 bolts and crankshaft position sensor protector from the cylinder block sub-assembly and oil pan sub-assembly.

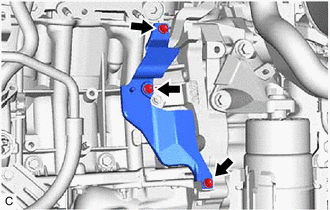

      GTY766023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

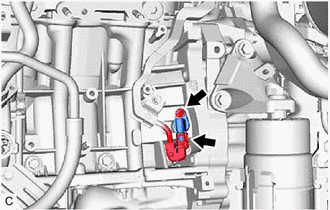

      GTY766025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
