Engine Control System (2GR-FKS) - Service Information
›
Engine Coolant Temperature Sensor
›
Components [06/2018 - ]
Components [06/2018 - ]

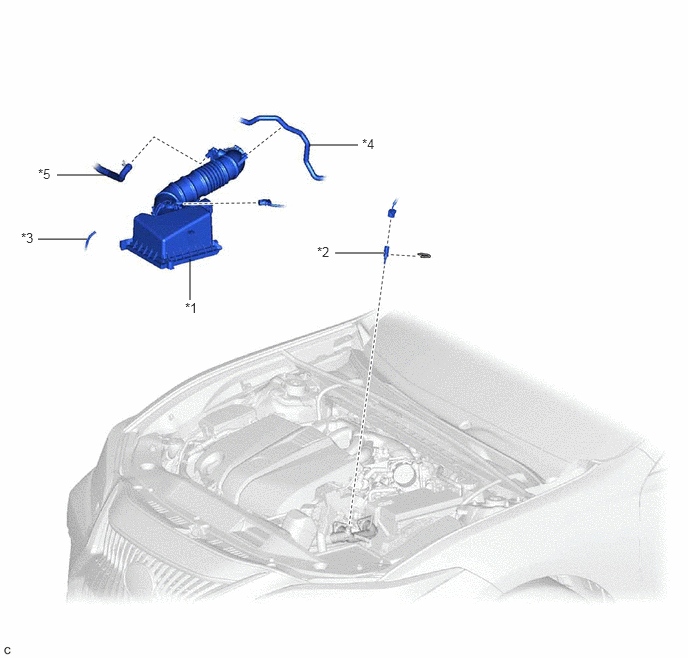

Fig 1: Engine Coolant Temperature Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
AIR CLEANER CAP WITH AIR CLEANER HOSE
*2
ENGINE COOLANT TEMPERATURE SENSOR
*3
VACUUM HOSE
*4
NO. 1 FUEL VAPOR FEED HOSE
*5
NO. 2 VENTILATION HOSE
-
-
