Components [06/2018 - ]

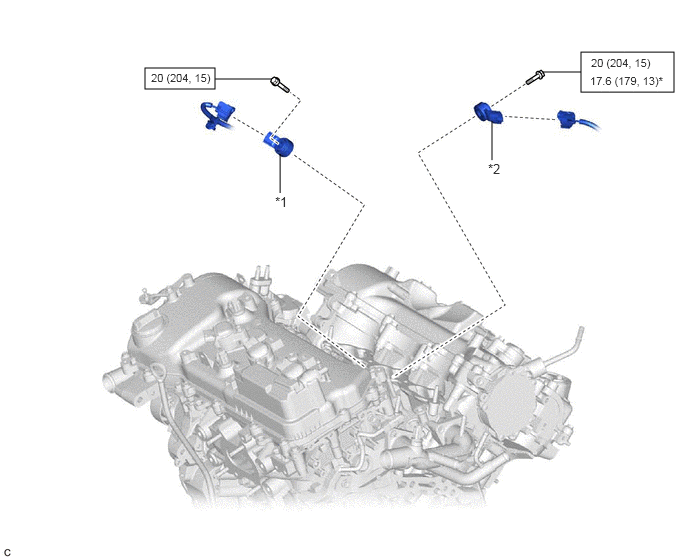

Fig 1: Knock Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	KNOCK CONTROL SENSOR (for Bank 1)	*2	KNOCK CONTROL SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
