Removal [08/2021 - 09/2022]: Procedure

Refer to REMOVAL [08/2021 - 09/2022]

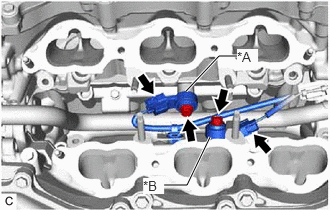

1. Disconnect the 2 knock control sensor connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Bank 1
   *B	for Bank 2

2. Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
   NOTE:

   If a knock control sensor has been struck or dropped, replace it.
