Components [06/2018 - ]

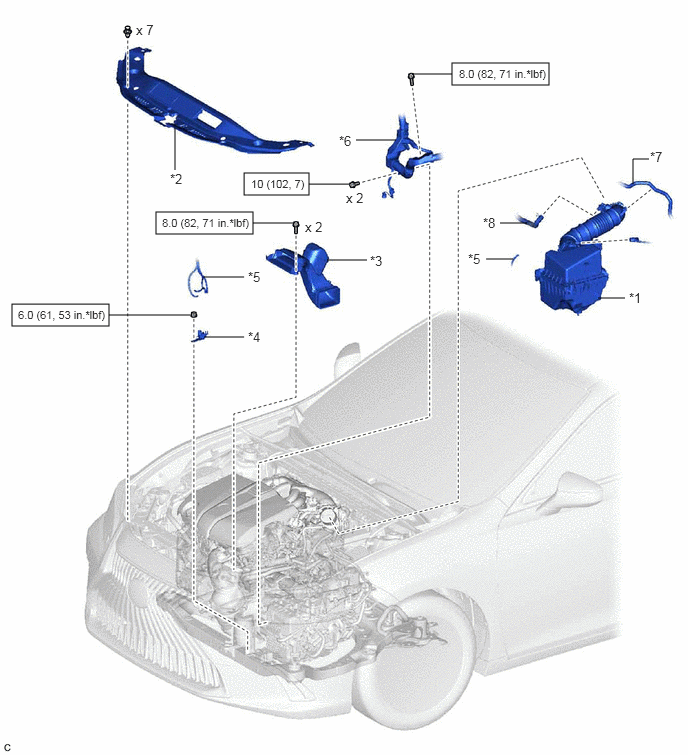

Fig 1: Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
| *5 | VACUUM HOSE | *6 | ENGINE WIRE |
| *7 | NO. 1 FUEL VAPOR FEED HOSE | *8 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
