Home › Lexus › 2021 › GX 460 Base › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System (Diagnostics - Introduction) › Power Window Control System › Parts Location [08/2019 - ] › Illustration

Parts Location [08/2019 - ]: Illustration

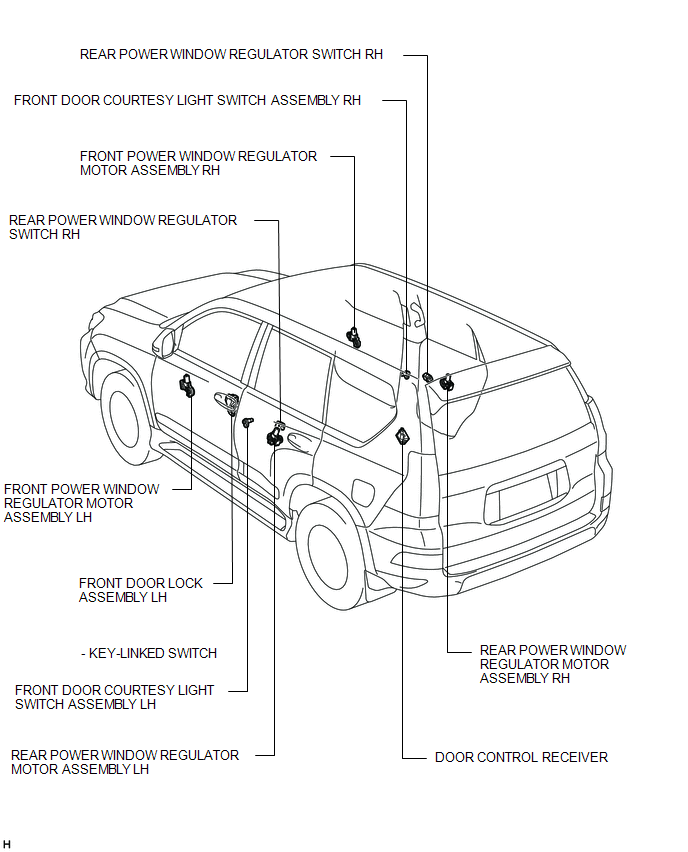

Fig 1: Power Window Control System Components Location (1 Of 2)
GTY952629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

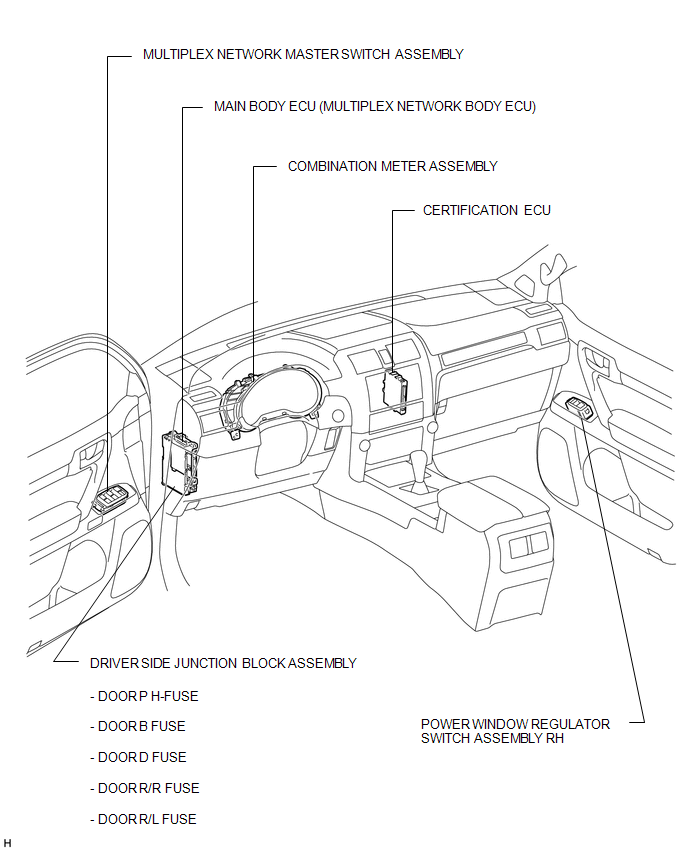

Fig 1: Power Window Control System Components Location (2 Of 2)
GTY948931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
