Disassembly [08/2015 - ]: Procedure

See step  2

1. Disconnect the fuel pump connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

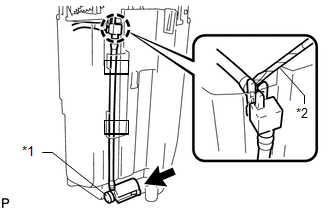

2. Disconnect the jet pump from the No. 1 fuel sub-tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Jet Pump
   *2	Protective Tape

3. Remove the tube part from the No. 1 fuel sub-tank.
   1. Disconnect the tube from the 2 clamps on the No. 1 fuel sub-tank.
   2. Using a small screwdriver, detach the claw from the No. 1 fuel sub-tank.

      HINT:

      Tape the screwdriver tip before use.

      NOTE:

      Do not damage the No. 1 fuel sub-tank.

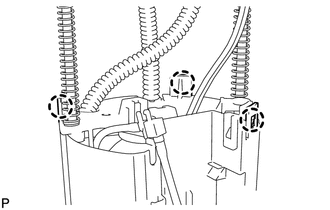

4. Using a screwdriver, detach the 3 claws from the claw holes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

   NOTE:

   Do not damage the No. 1 fuel sub-tank.

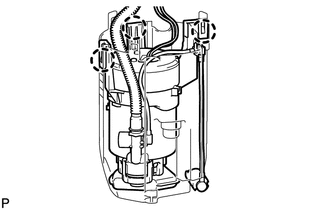

5. Using a screwdriver, detach the 3 claws from the claw holes and remove the No. 1 fuel sub-tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

   NOTE:

   Do not damage the No. 1 fuel sub-tank.

1. Using a screwdriver, detach the 5 claws from the claw holes and disconnect the fuel pump from the fuel filter case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Fuel Filter Case

   HINT:

   Tape the screwdriver tip before use.

2. Disconnect the fuel pump wire harness connector from the fuel pump to remove it.
3. Remove the O-ring and fuel pump spacer from the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	O-ring
   *2	Fuel Pump Spacer

1. Remove the fuel main valve from the fuel filter case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Fuel Filter Case
   *2	O-ring

2. Remove the 2 O-rings from the fuel main valve.
