Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  2. REMOVE ACCELERATOR PEDAL POSITION SENSOR ASSEMBLY
    NOTE:

    This accelerator pedal position sensor assembly does not require lubrication. Do not apply oil or other lubrication to the accelerator pedal position sensor assembly.

    If applied, the accelerator pedal position sensor assembly must be replaced.

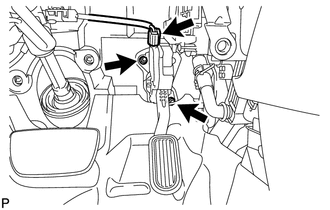

    1. Disconnect the accelerator pedal position sensor connector.
      GTY275040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal position sensor assembly.
