Engine Control System (Service Information)
›
Camshaft Position Sensor
›
Components [08/2015 - ]
Components [08/2015 - ]

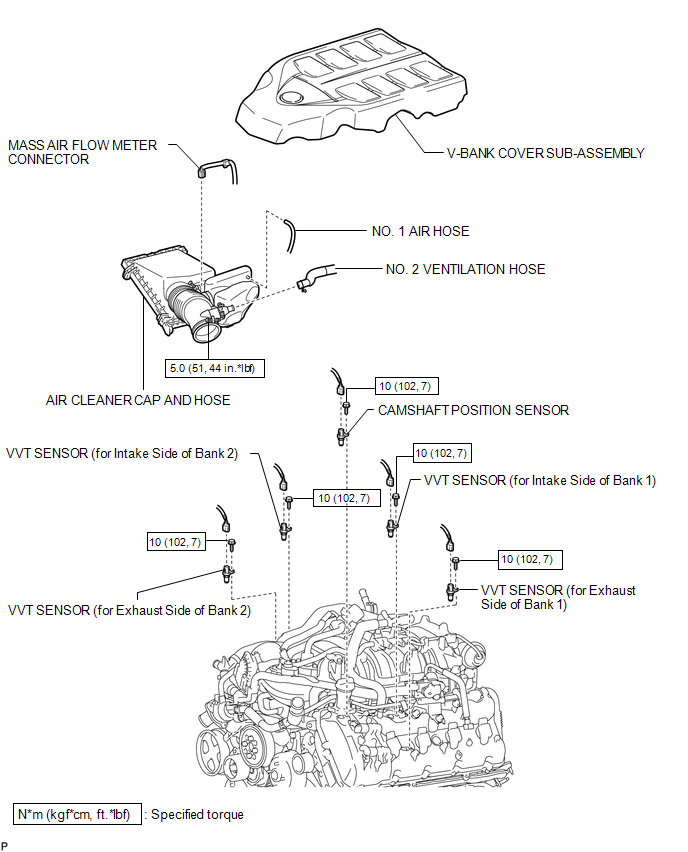

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
