Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

  2. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

  3. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.

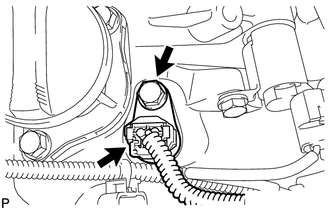

      GTY275056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor.
  4. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensor connectors.

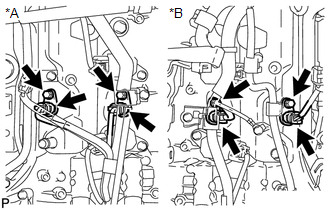

      GTY639324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for Bank 2
      *B for Bank 1
    2. Remove the 4 bolts and 4 VVT sensors.
