Removal [08/2015 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
    1. Remove the 2 bolts and crankshaft position sensor protector.

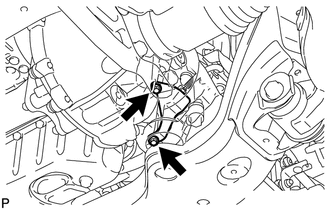

      GTY275053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

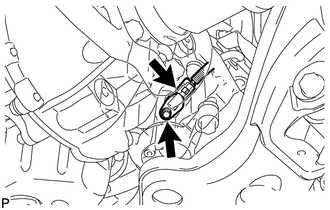

      GTY275052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
