Engine Coolant Temperature Sensor
›
Components [08/2015 - ]
Components [08/2015 - ]

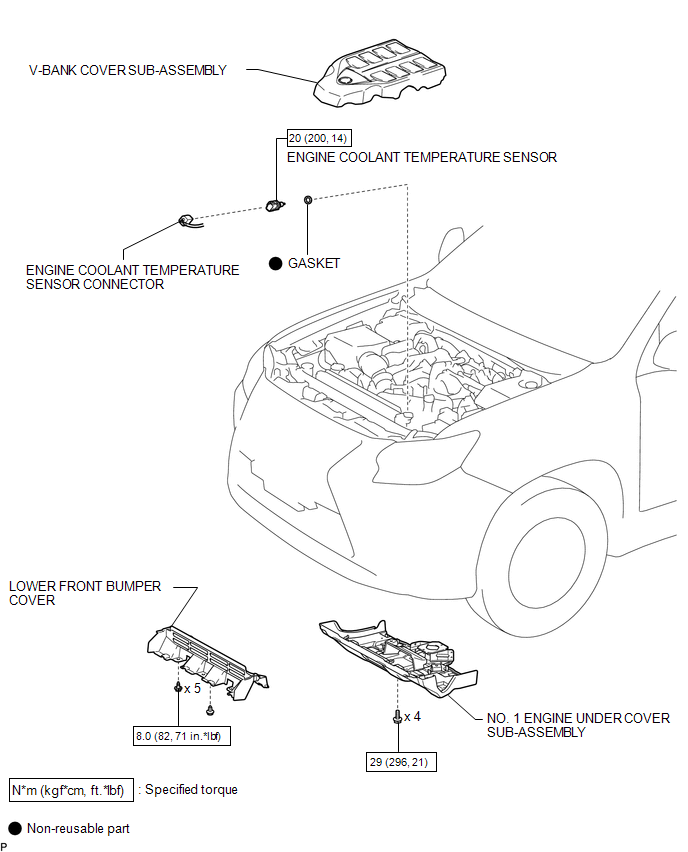

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
