Removal [08/2015 - ]: Procedure

  1. REMOVE EGR COOLER ASSEMBLY
    1. Remove the EGR cooler (Refer to REMOVAL [08/2015 - ] ).

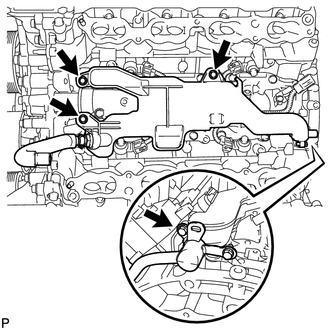

  2. REMOVE SEPARATOR CASE
    1. Remove the 4 bolts and separator case.
      GTY281643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

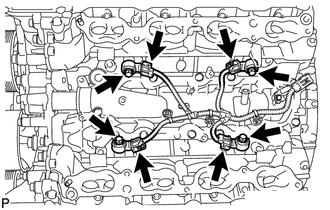

  3. REMOVE KNOCK SENSOR
    1. Disconnect the 4 knock sensor connectors.
      GTY275032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 knock sensors.
