Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY

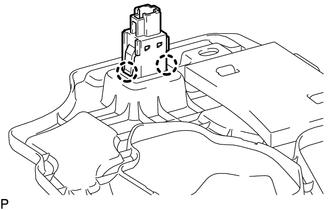

    1. Detach the 2 claws and remove the pre-collision system cancel switch assembly.
      GTY459411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
