Driving Support Switch Control Ecu
›
Components [08/2015 - 08/2019]
Components [08/2015 - 08/2019]

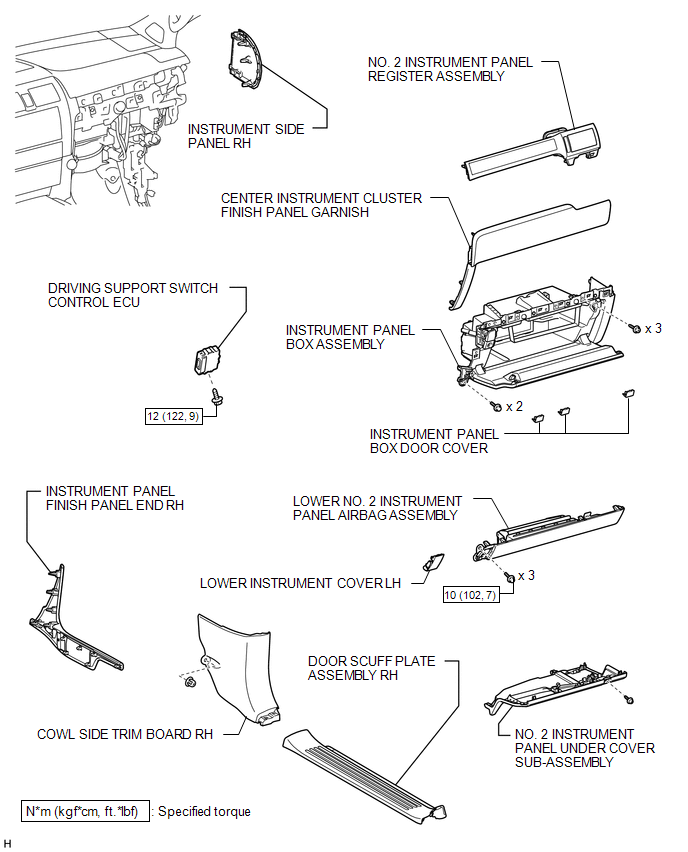

Fig 1: Driving Support Switch Control ECU Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
