Height Control Dryer
›
Components [08/2015 - ]
Components [08/2015 - ]

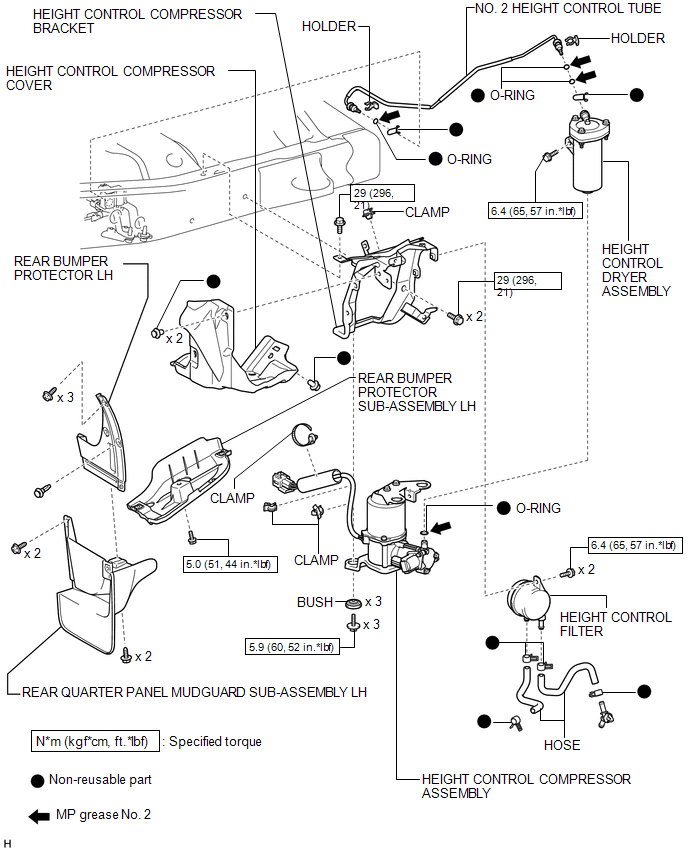

Fig 1: Height Control Dryer Replacement Components With Torque Specifications [08/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
