Automatic Transmission (Service Information)
›
Transmission Control Cable
›
Components [08/2015 - ]
Components [08/2015 - ]

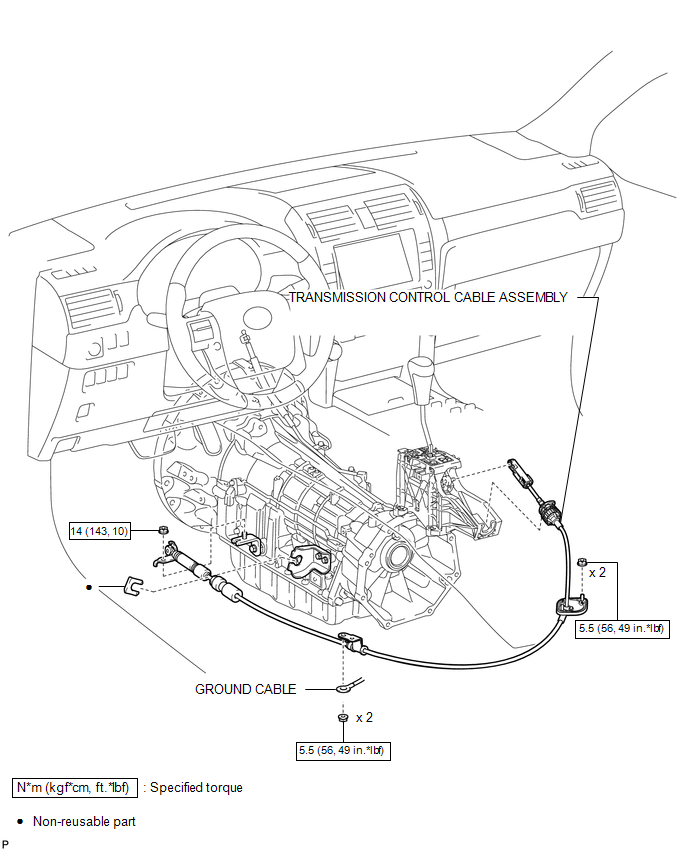

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
