Components [10/2017 - 09/2020]

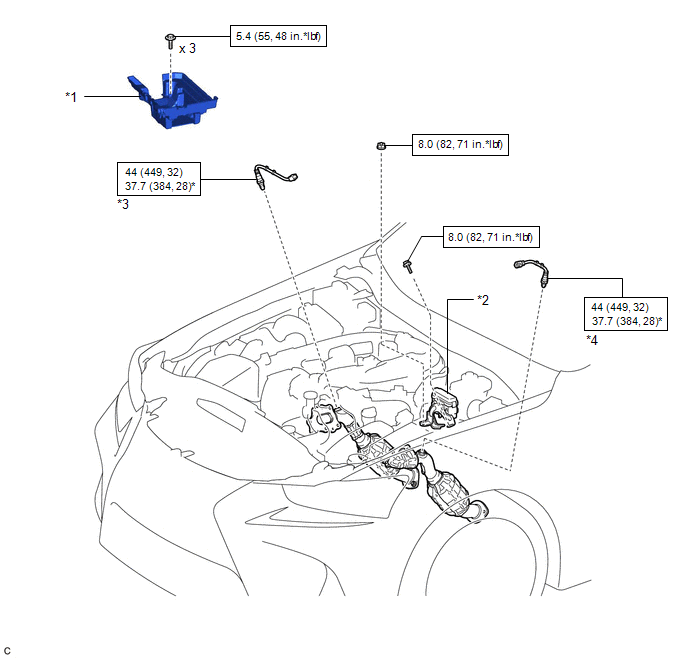

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [10/2017 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY TRAY	*2	NO. 3 ENGINE ROOM RELAY BLOCK
*3	AIR FUEL RATIO SENSOR (for Bank 1)	*4	AIR FUEL RATIO SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
