Components [10/2017 - 09/2020]

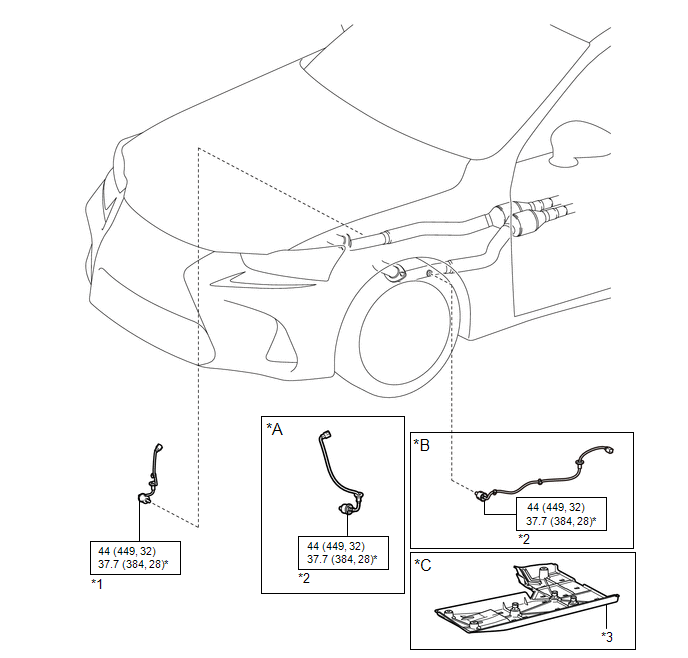

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications [10/2017 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	*B	for AWD
*C	w/ Front Floor Cover LH	-	-
*1	HEATED OXYGEN SENSOR (for Bank 1)	*2	HEATED OXYGEN SENSOR (for Bank 2)
*3	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
