Parts Location [07/2020 - ]: Illustration

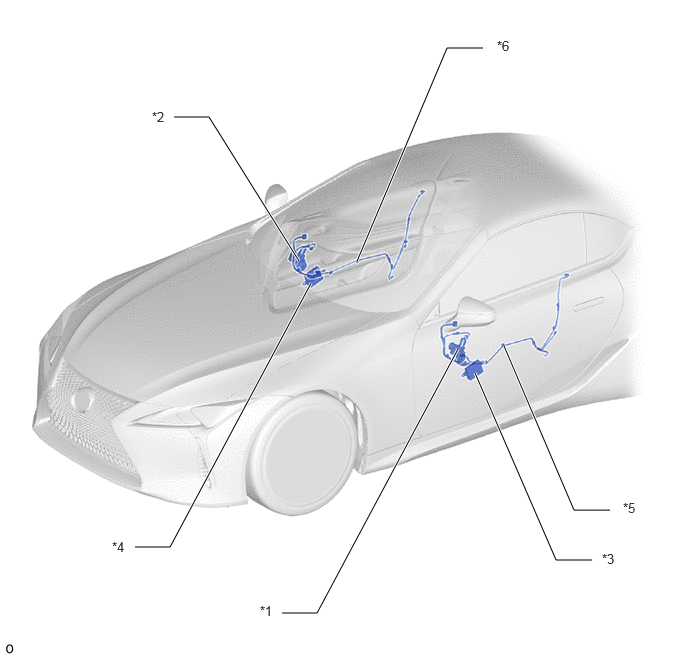

Fig 1: Power Window Control System Replacement Components (1 Of 3) [07/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*2	POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
*3	FRONT MULTIPLEX NETWORK DOOR ECU LH	*4	FRONT MULTIPLEX NETWORK DOOR ECU RH
*5	FRONT DOOR WIRE LH	*6	FRONT DOOR WIRE RH

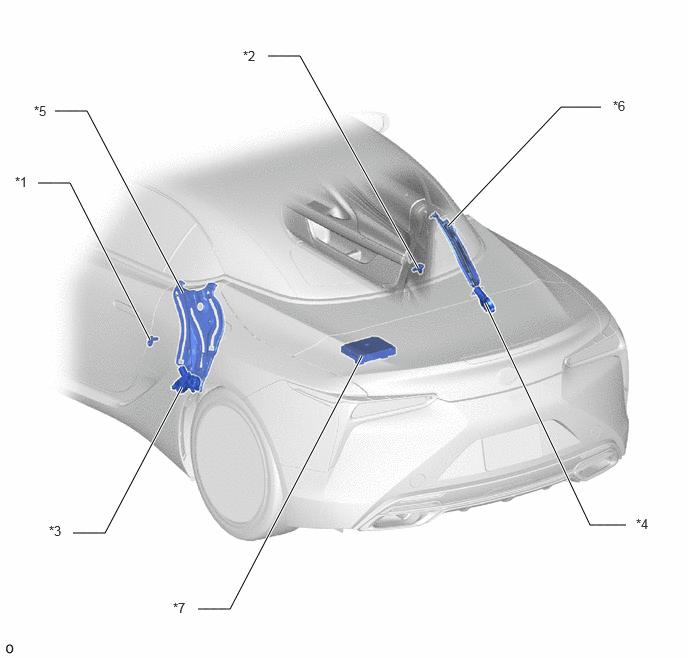

Fig 1: Power Window Control System Replacement Components (2 Of 3) [07/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COURTESY LIGHT SWITCH LH	*2	COURTESY LIGHT SWITCH RH
*3	QUARTER WINDOW REGULATOR MOTOR ASSEMBLY LH	*4	QUARTER WINDOW REGULATOR MOTOR ASSEMBLY RH
*5	QUARTER WINDOW REGULATOR SUB-ASSEMBLY LH	*6	QUARTER WINDOW REGULATOR SUB-ASSEMBLY RH
*7	REMOVABLE ROOF CONTROL ECU ASSEMBLY	-	-

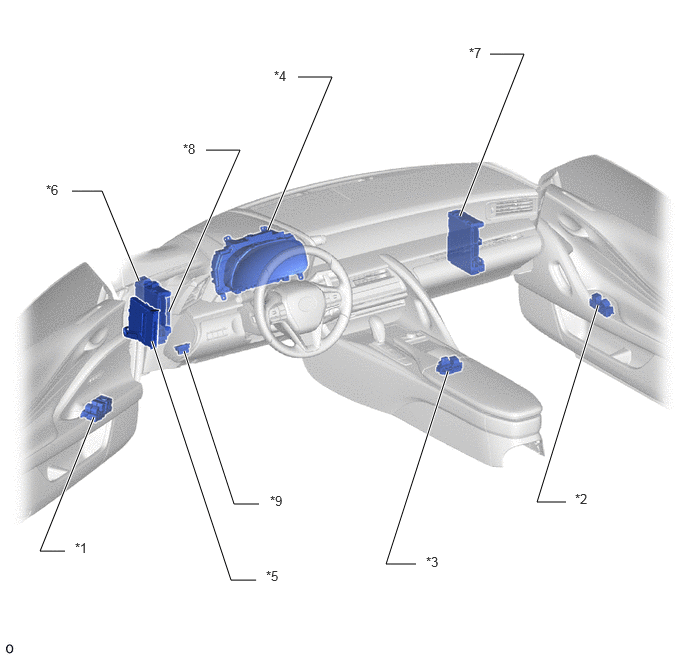

Fig 1: Power Window Control System Replacement Components (3 Of 3) [07/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY	*2	POWER WINDOW REGULATOR SWITCH ASSEMBLY
*3	SLIDING ROOF SWITCH ASSEMBLY (ALL WINDOW SWITCH)	*4	COMBINATION METER ASSEMBLY
*5	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*6	JUNCTION BLOCK ASSEMBLY LH - MPX-B D NO. 1 FUSE - DOOR D NO. 1 FUSE - DOOR D NO. 2 FUSE - DOOR R/R 1 FUSE - IG1 D NO. 1 FUSE
*7	JUNCTION BLOCK ASSEMBLY RH - MPX-B P NO. 1 FUSE - DOOR P NO. 1 FUSE - DOOR R/L NO. 1 FUSE - IG1 P NO. 2 FUSE	*8	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*9	DLC3	-	-
