Components [07/2020 - ]

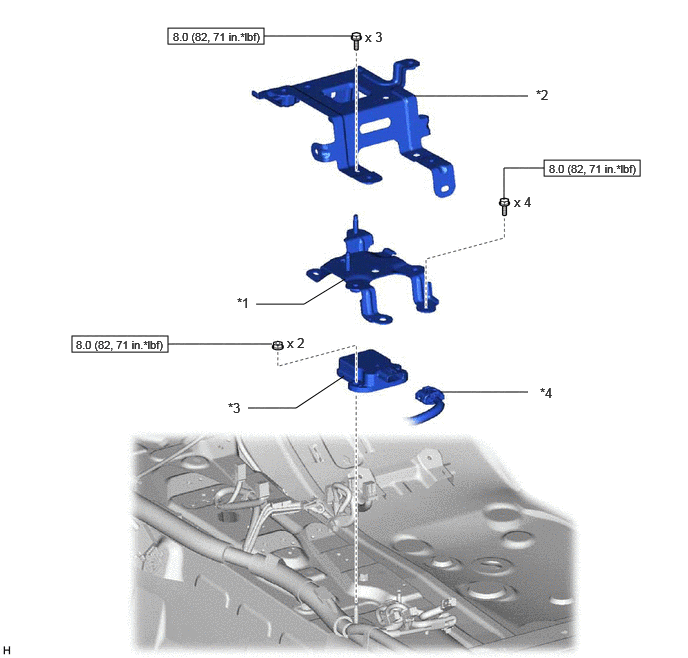

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 CONSOLE BOX MOUNTING BRACKET	*2	NO. 1 CONSOLE BOX SUPPORT
*3	YAW RATE SENSOR	*4	CONNECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
