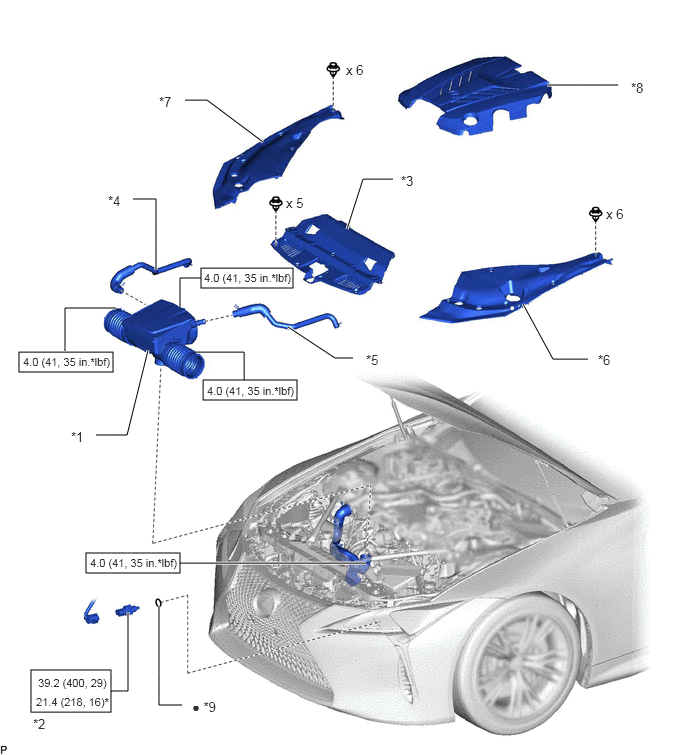

Components [07/2020 - ]
| *1 | AIR CLEANER HOSE ASSEMBLY | *2 | ENGINE OIL TEMPERATURE SENSOR |
| *3 | LOWER RADIATOR AIR DEFLECTOR | *4 | NO. 2 PCV HOSE |
| *5 | NO. 3 PCV HOSE | *6 | RADIATOR SUPPORT TO FRAME SEAL LH |
| *7 | RADIATOR SUPPORT TO FRAME SEAL RH | *8 | V-BANK COVER SUB-ASSEMBLY |
| *9 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a ball joint lock nut wrench | |
| • | Non-reusable part | - | - |
