Components [07/2020 - ]

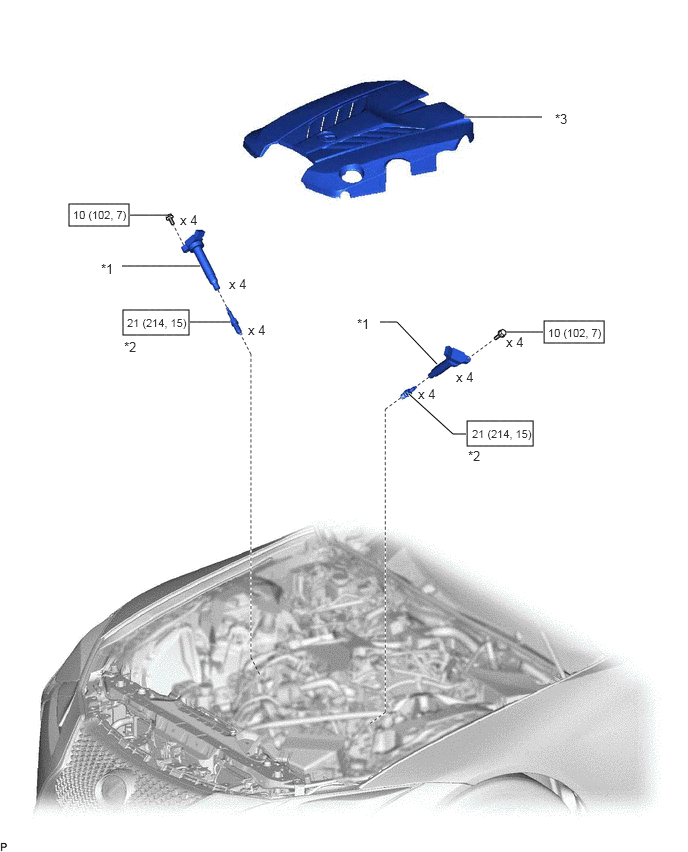

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	V-BANK COVER SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
