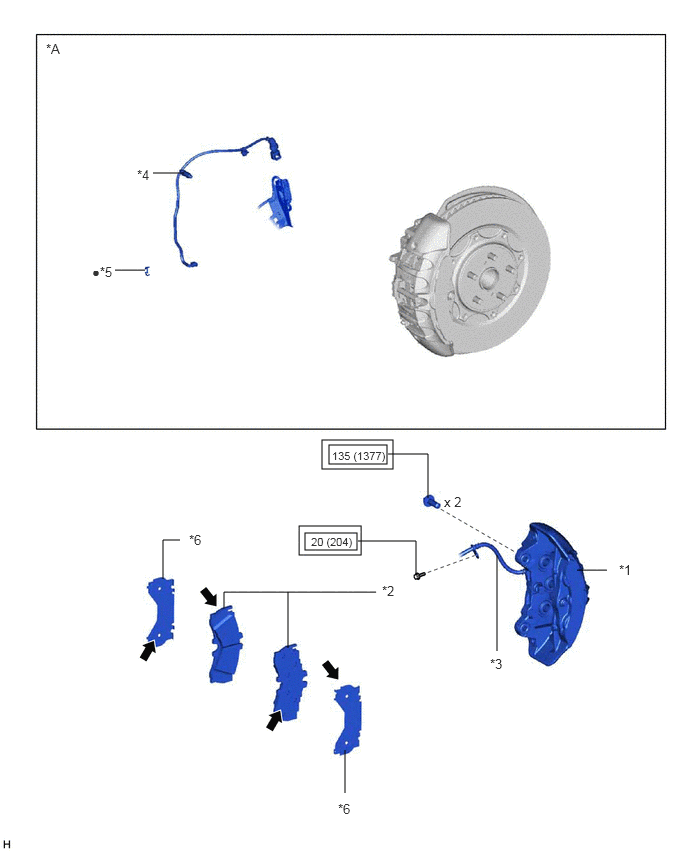

Components [07/2020 - ]
| *A | for RH Side | - | - |
| *1 | DISC BRAKE CYLINDER ASSEMBLY LH | *2 | FRONT DISC BRAKE PAD |
| *3 | FRONT FLEXIBLE HOSE | *4 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH |
| *5 | PAD WEAR INDICATOR WIRE CLIP | *6 | NO. 1 ANTI-SQUEAL SHIM |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Brake shim grease (Part No. 08887-80409) | - | - |
