Removal [07/2020 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE SPARK PLUG

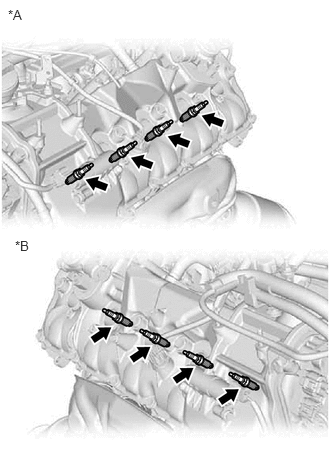

*a for Bank 1 *b for Bank 2 - Remove the 8 spark plugs from the cylinder head sub-assembly and cylinder head LH.NOTE:
If a spark plug has been struck or dropped, replace it.
HINT:
Arrange the removed parts in the correct order.
- Remove the 8 spark plugs from the cylinder head sub-assembly and cylinder head LH.
