Installation [01/2017 - ]: Procedure

  1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

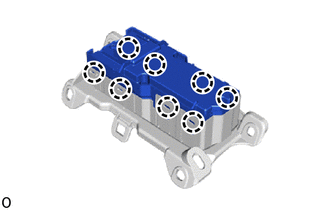

    1. Attach the claw to install the multiplex network master switch assembly to the switch base.
      GTY818036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

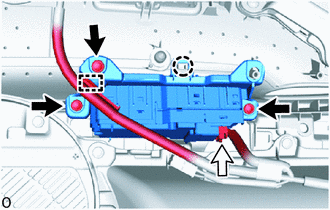

    2. Attach the claw to install the multiplex network master switch assembly with switch base to the front door trim board sub-assembly.
      GTY836699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 screws.
    4. Connect the connector and attach the wire harness clamp.

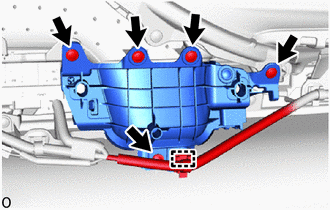

    5. Install the pull handle with the 5 screws.
      GTY818037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Attach the wire harness clamp.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 39 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 39 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 39 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 39 [05/2023 - ]

  3. INSTALL FRONT DOOR TRIM COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 41 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 41 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 41 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 41 [05/2023 - ]

  4. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [01/2017 - ]

  5. INSPECT DOOR LOCK OPERATION

    Refer to OPERATION CHECK [01/2017 - ]
